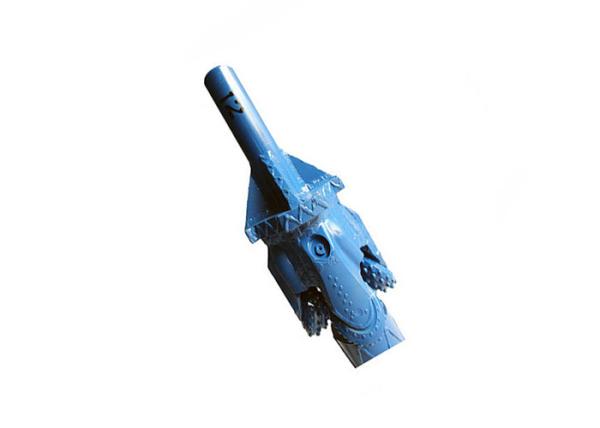

311mm 346mm Rock Reamer Foundation Pile HDD Hole Opener
Introduction
The reamer bits mainly consists of more than 3 cones.cutting
structure with premium tungsten carbide
hardfacing o premium tungsten carbide insert of formulas and new
techniques is utilized,and increases
wear-resistance capability of reamer.
Application: Hole opener can enlarge a small well hole to bigger
diameter in construction field,bridge construction,
super highway construction,railway construction etc. This kind of
bits are suitbale for different complex
formation,shales,limestone,cobblestone and so on.
Product parameters
| Product name | HDD hole opener |
| Usage | horizontal directional drilling |
| Application formation | medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc. |
| Weight | 200kg-400kg |
| MOQ | 1 |
Reamer Size | Cone size and # of Cones | Threads | |||
| Cone size | #of Cones | Cone size | # of Cones | ||
| 10“ | 6 1/2” | 3 | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) | ||
| 12“ | 8 1/2” | 3 | |||
| 16“ | 8 1/2”or 9 1/2” | 4 | For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF) For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH | ||
| 18”-20“ | 5 | 12 1/4” | 4 | ||
| 22”-24“ | 6 | 12 1/4” or 13 5/8” | 5 | ||
| 28”-30” | 7 | 6 | |||
| 32”-34” | 8 | 7 | |||
| 36“-38” | 9 | 8 | |||
| 40“-42” | 10 | 9 | |||
| 44“-46” | 11 | 10 | |||
| 48”-50” | 12-13 | 11 | |||
Advantages
1. Cutting Structure
In response to the characteristics that inserts in different areas
on the cone have different cutting actions, conical inserts are
placed in permanent contact area and wedge inserts are placed in
alternative contact area so that the drilling efficiency is greatly
improved. Wear resistance of cutting structure is enhanced by
setting diamond inserts in the permanent contact area of the cone
where inserts are severely worn. Tungsten carbide inserts are
placed on cone top face to protect cone body from abrasive erosion.
2. Hydraulic Design
Small angled watercourse design increased the shirttail thickness
and can effectively prevent the watercourse erosion.Optirnized
hydraulics structure improves the clearing capability and increases
ROP.
3. Product Application
It is suitable for sidetracking, deep well drilling and old well
Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill
manufacturer with complete testing equipment and strong technical
force. Our products have a wide range, high quality, reasonable
price, and timely delivery, which are widely used in oilfields,
drilling, non-excavation fields and other industries. Our products
are widely recognized and trusted by users, and can meet the
ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact
us for future business relations and mutual success!
FAQ
Q: How to order the products?
A: Order directly!
Q: How to control the quality?
A: We should be checking & testing everyone drill bit before
shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Can we select the color of the drill bit?
A: Yes, we have the color of bule, golden, silvery for your choose.
If you need, we can make the drill bit color based on yours.
Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will be
compensate you the same. Any question or problem we will be reply
you within 24 hours.
|
|
