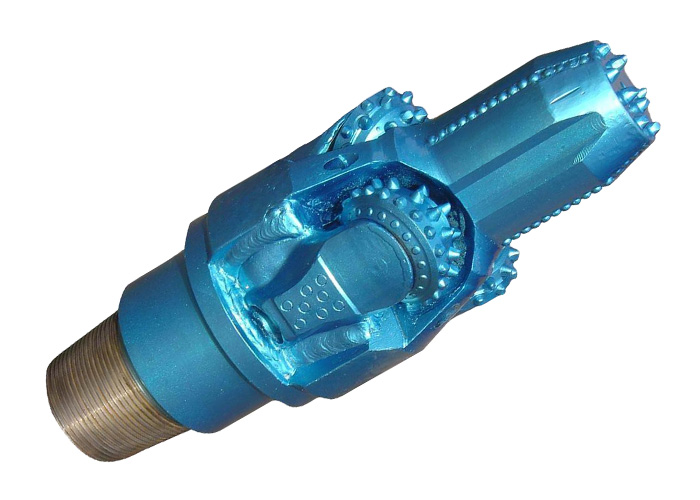

Steel Body HDD Hole Opener With Removable Cut Directional Drilling HDD Back Reamers
Description:
We can customize 3 wheels, 4 wheels rock reamer according to
customer expansion force and drill pipe size: suitable for hard
formations with high compressive strength, such as sandstone,
limestone, dolomite gypsum, marble, etc. Seal type: rubber seal and
metal seal tooth wheel palm plate are available.
We produce rock reamers suitable for various formations, soft rocks
like limestone and sandstone, hard rocks like granite and basalt,
etc. Choosing the right palm can increase drilling speed and
service life. The size of the water spray hole can be designed
according to the hole diameter of the reamer under construction.
, rock reamers with 5 or more rounds. There are many options for
buckle types, like API, IF, FH, etc. One such product is the rock
reamer, which is an exploration tool for rocks.
Product name | HDD hole opener |
Usage | horizontal directional drilling |
Weight | 200kg-400kg |
MOQ | 1 |
Application formation | medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc. |
Reamer Size | Cone size and # of Cones | Threads | |||
Cone size | #of Cones | Cone size | # of Cones | ||
10“ | 6 1/2” | 3 | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) | ||
12“ | 8 1/2” | 3 | |||
16“ | 8 1/2”or 9 1/2” | 4 | For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF) For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH | ||
18”-20“ | 5 | 12 1/4” | 4 | ||
22”-24“ | 6 | 12 1/4” or 13 5/8” | 5 | ||
28”-30” | 7 | 6 | |||
32”-34” | 8 | 7 | |||
36“-38” | 9 | 8 | |||
40“-42” | 10 | 9 | |||
44“-46” | 11 | 10 | |||
48”-50” | 12-13 | 11 |
Machine Type | Drilling Equipment |
Use | Well Drilling |
Application | HDD reamer |
Usage | Hole Drilling |
Advantage | High Performance Cost Ratio |
Applicable Industries | Construction works , Energy & Mining |
Pangolin (China) Construction Machinery Co., Ltd. is a drill
manufacturer with complete testing equipment and strong technical
force. Our products have a wide range, high quality, reasonable
price, and timely delivery, which are widely used in oilfields,
drilling, non-excavation fields and other industries. Our products
are widely recognized and trusted by users, and can meet the
ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact
us for future business relations and mutual success!
